    Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

    Ask Lasest Price
    Brand Name : Kelite Valve
    Model Number : 1/2"-8", CL150-600
    Certification : API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000-5000PCS per month
    Delivery Time : 20-70days
    • Product Details
    • Company Profile

    Two Piece Floating Type Ball Valve , Fire Safe Ball Valve ODM Service

    Two piece casting floating type ball valve of 1/2"-8" CL150-600 API 6D , 608 desgin


    Product descriptions

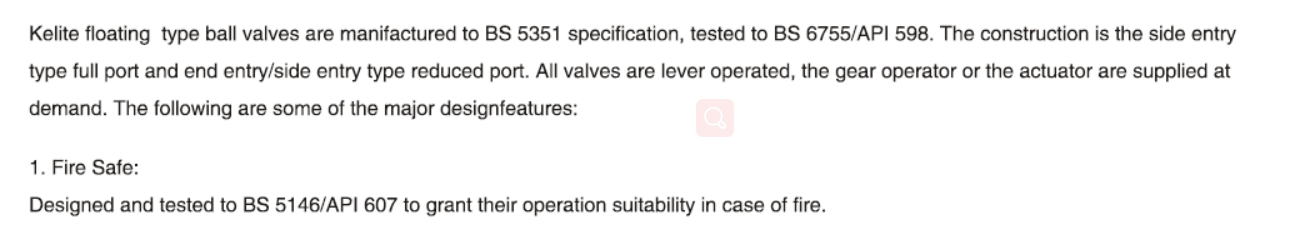

    Split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts. Floating ball valves are designed, constructed and tested according to the most recent international standards, such as API, ASME, BS, DIN, etc.


    Product descriptionSide-mounted floating ball valve
    ModelFloating ball valve
    Nominal diameterNPS 1/2~NPS 8
    Operating temperature-46℃~220℃

    Operating pressure

    CLASS 150~CLASS 600
    MaterialWCB,LCB,CF8,CF8M,etc.
    Design standardAPI 608,ISO 17292,BS 5351
    Structural lengthASME B16.10
    Connecting endASME B16.5,ASME B16.25
    Test standardAPI 598, API 6D
    Operation methodHandle, worm, motor-drive unit, pneumatic drive unit
    Application fieldsWater, petroleum and natural gas

    Other remarks 1

    A locking device is provided to prevent misoperation of valve.
    Other remarks 2Valve stem flyout prevention structure design, to prevent accident due to flyout of valve stem caused by abnormal pressurization in the chamber

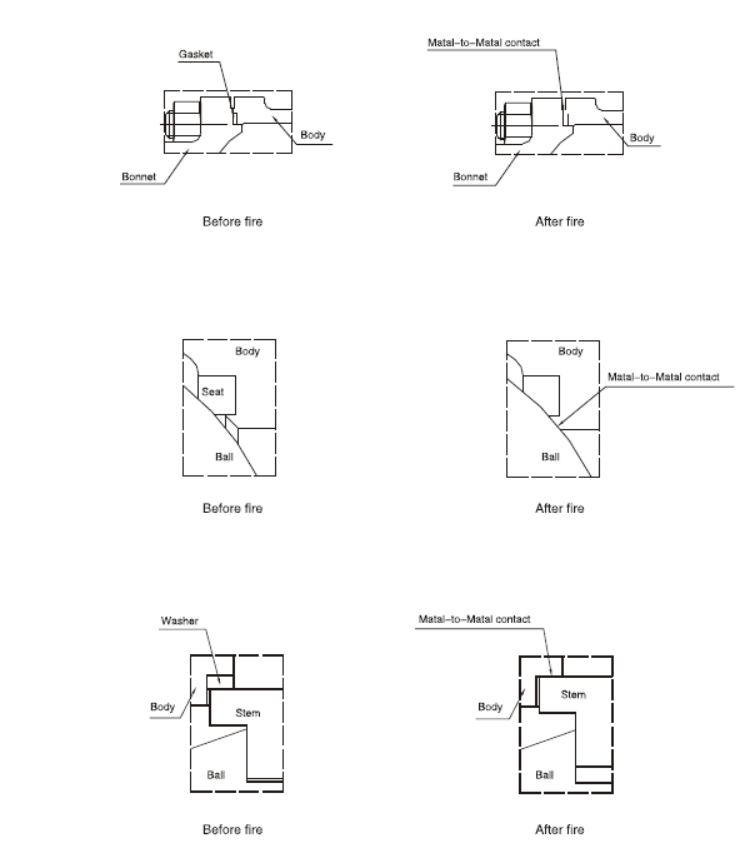

    Other remarks 3Fireproof and antistatic design
    Other remarks 4Full bore of valve convenient for pigging, of small flow resistance and high flow capacity
