API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve

    Buy cheap API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve from wholesalers

    Buy cheap API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve from wholesalers
    • Buy cheap API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve from wholesalers

    API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve

    Ask Lasest Price
    Brand Name : Kelite Valve
    Model Number : 2"-60",CL150-300
    Certification : API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000-10000PCS per month
    Delivery Time : 30-60days
    • Product Details
    • Company Profile

    API ISO CE Standard Floating Type Ball Valve , Gear Operated Ball Valve

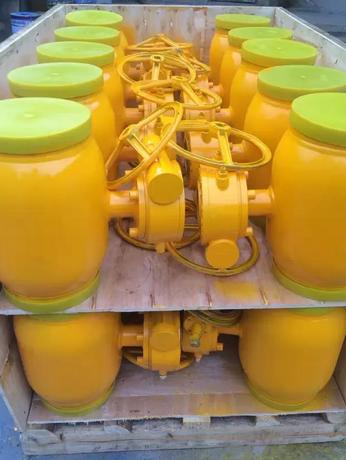

    Welded gear operation floating plate ball valve 2"-60" for gas, oil, water


    Welded Floating Ball Valve,Pipeline Branches Control,Pipeline Construction,Pipeline Ball Valves


    Product introduction


    All welded ball valve material:


    1): Valve body: carbon steel ST37.0, A106-B; No. 20 steel


    2): Sphere: Stainless steel 304 or 316


    3): Stem: 2Cr13


    4): stem seal: perfluoro-like glue


    5): Sphere seal: PTFE (PTFE + C)


    Standard features of all welded ball valves:


    1): Path: DN15~600


    2): Pressure: PN 16~64


    3): Working temperature: -29 ° C ~ +200 ° C


    4): All welded ball valve adapts to medium: water, oil, natural gas


    5): All-welded ball valve operation mode: water, oil, natural gas


    Fully welded ball valve features:


    1): Since the all-welded ball valve body is welded, the valve is light and easy to insulate.


    2): The spring-loaded PTFE sphere seal ensures absolute tightness under all application conditions


    3): All welded ball valve ball and stem are made of stainless steel with two o-ring anti-flying valve stem structure to ensure the tightness, the upper container can be replaced, the working life is long


    4): All welded ball valves are available in welded, wired and flanged versions


    5): Obtained ISO 9001,API 6D,608 certification


    6): Steel ball valves are suitable for use in local heating and cooling systems, pressure gas lines and oil lines.


    Product typeSwitch valve
    Product descriptionFully Welded Ball Valve for City Nature Gas / Heating
    ModelHQ67F
    SizeNPS2”~60”(50mm~1500mm)
    Seal typeSoft Seal
    Operating temperature-29℃~250℃
    Operating pressureCLASS 125~ 300,PN10~PN25
    MaterialASTM A36,A105,A106,20#,etc
    StandardAPI 608,ANSI B16.34
    Face to faceASME B16.10
    Connecting endASME B16.25
    Test standardAPI 598
    Operationmanual, electric
    Application fieldswater, hot water, natural gas
    FunctionDBB
    Other remark 1Can be used either above-ground or underground.
