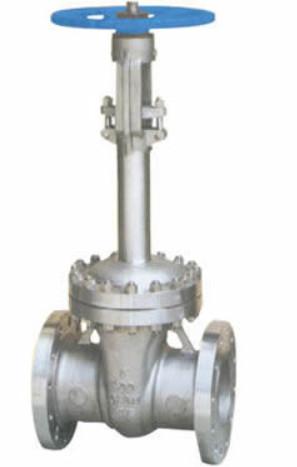

| Product type | API Forged steel cryogenic gate valve, cryogenic valve |
| Product description | low temperature |
| Model | cryogenic gate valve |
| Nominal diameter | 1/2”～36” |
| Operating temperature | -196℃～300℃(the range of service temperature may vary for different
materials) |
| Operating pressure | 150-1500 CLASS |
| Material | Main material: LCC,LF2,304,304L ETC. |
| Design standard | BS 1873 ,BS 6364,ASME B16.34,GB 12235,GB 12224 |
| Structural length | ASME B16.10 |
| Connecting end | ASME B16.5,GB 9113 |
| Test standard | API 598,ISO 5208,JB/T9092,GB/T13927,BS 6364 |
| |
| Application fields | For application in fields such as electric power industry,
petroleum refining, petrochemical engineering, offshore oil, tap
water engineering in urban construction, chemical engineering, etc. |
| Other remarks | The extension dimensions of valve stem and bonnet may vary
according to different temperature ratings. |
| Other remarks 2 | As valves subject to a temperature ≤-101℃ shall be protected
against subzero deformation, the main parts are subzero treated. |
| Other remarks 3 | The sealing faces of valve seat and valve clack are build-up welded
with hard alloy to improve the erosion resistance and extend the
service life of valve. |
| Other remarks 4 | The friction between sealing faces is smaller during opening and
closing, facilitating a longer service life. |
| Other remarks 5 | The valve clack is of taper, needle, ball and parabola types, and
can be used to adjust the flow rate. |
| Other remarks 6 | SS+ graphite or metallic seal or pressure self-sealing is adopted
between valve body and bonnet for reliable sealing. |
| Other remarks 7 | Rising stem structure, making the valve switch position be clear at
a glance |
| Other remarks 8 | The valve stem thread will not come into contact with the medium,
so the corrosion of medium to the thread is reduced. |
| Other remarks 9 | Small switching moment, reliable sealing |
| Other remarks 10 | The valve clack can be machined into parabola, spherical, needle
shapes, etc. according to the requirement of customer. It can be
used for adjustment (rough adjustment) on pipeline. |
| Other remarks 11 | Short stroke is suitable for application at positions subject to
frequent opening. |
| Other remarks 12 | Y-shape stop valve – the streamline flow pass has a very high flow
coefficient, and can maximally reduce the pressure drop through the
system. |
| Other remarks 13 | Through improving the structural design and selecting reasonable
packing structure and qualified packing supplier, the valves can
meet the Class A sealing test requirements of ISO 15848 FE. |
