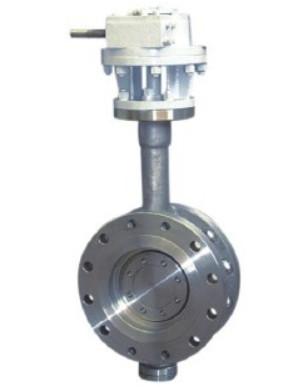

Low temperature butterfly valve, good sealing and avoid potential
rupture
Size: NPS2～NPS48,
Rating: Class150～Class900
Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless
Steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic
Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical
and so on
Kelite Valve is specialized in manufacturing Cryogenic Butterfly
valves with following good characteristics: good sealing
performance, reliable safety guarantee, long life span and etc.
Cryogenic Butterfly valve is one type of the many cryogenic valves,
and the other types are cryogenic ball valve, cryogenic gate valve,
cryogenic globe valve and etc.
Long neck bonnet design is used for Cryogenic butterfly valve which
could not only minimize the incoming of heat from environment which
may cause the gasfication of medium, but also at same time avoid
the packing from being frosty or freezing by maintaining the
temperature above 0 ℃. The length of the long neck is the most
important factor for this designing, and it refers to the distance
between the bottom of packing box and the surface of back sealing
of valve.
Cryogenic Butterfly valves(Generally flanged connection) are
suitable for use on various kinds of pipeline from Class150 To
Class600, PN16 To PN100 to cut off or connect the flowing of
medium. By using different material, the valves could be suitable
for medium such as water, steam, oil, nitric acid, acetic acid,
oxidizing substance, carbamide and etc. Manual/worm gear/pneumatic
or electric actuators could be chosen by needs.
Cryogenic Butterfly valve refers to the butterfly valve with
working temperature below -40℃, normally used on devices containing
Ethylene, LNG and etc. The flammable & exposive cryogenic liquid
medium cryogenic butterfly valve served such as ethylene, liquid
oxygen, liquid hydrogen, LNG, liquefied petroleum products and so
on would gasify if temperature increases which having hundreds of
times bigger volume than in liquid state. Cryogenic butterfly valve
is an indenpensable device and ensures the safe, economic and
continous working in industry of petroleum chemical, air
separation, natural gas and so on.
Cryogenic Butterfly Valve product features
- Owing to the flammable & explosive features of cryogenic medium
such as LPG and LNG, fire safe & anti-static structure is designed
for Cryogenic butterfly valve.
- For working temperature above -50℃,no long neck design; For working
temperature below -50℃,long neck structure is adopted.
- Cryogenic butterfly valve is suitable for the controling system for
carrying cryogenic liquid medium with its characteristic of quick
opening & closing and reliable sealing performance.
- The actuator of Cryogenic butterfly valve could be in manual, worm
gear, pneumatic or electric actuated.
Cryogenic Butterfly Valve product standard
Design and manufacture standards:JB/T 8527, API 609, BS6364
Face to face dimensions standards:ASME B 16.10, GB/T 12221
Flange dimensions standards:ASME B 16.5, GB, JB, HG, SH, BS, DIN,
JIS...
Testing inspection standards:API 598, GB/T 13927, GB/T 26480,
JB/T9092, ISO 5208
Technical parameters and characteristics:
| Product type | cryogenic valves of butterfly valve |
| Product description | Low temperature butterfly valve |
| Model | low temperature butterfly valve |
| Nominal diameter | NPS 2”～48”(DN50～DN1200) |
| Operating temperature | -196℃～340℃ |
| Nominal pressure | CLASS 150～900 (PN20～PN150) |
| Material | Main material: A351 CF8,CF8M,CF3,CF3M;A352 LCB,LCC, etc. |
| Design standard | API 609,ASME B16.34,BS 6364 |
| Structural length | ASME B16.10,GB/T 12221,API 609 |
| Connecting end | ASME B16.5,ASME B16.47,ASME B16.25,GB/T 9113 |
| Test standard | API 598,ISO 5208,GB/T 26480,GB/T 13927,BS 6364 |
| Operation method/td> | Handle, worm, motor-drive unit, pneumatic drive unit |
| Application fields | Low temperature industries such as LNG, LPG, LEG, air separation,
etc. |
| Other remarks 1 | The extension dimensions of valve stem and bonnet may vary
according to different temperature ratings. |
| Other remarks 2 | The main parts subject to a temperature ≤-101℃ are subzero treated
to prevent valve deformation under ultra-low temperatures. |
| Other remarks 3 | The sealing faces of valve seat and valve clack are build-up welded
with hard alloy to improve the erosion resistance and extend the
service life of valve. |
| Other remarks 4 | Compact structure, easy installation and disassembly, repair
friendly and light weight |
| Other remarks 5 | It has a certain adjustment capability, and can be used as a
control valve. |
| Other remarks 6 | Good sealing performance of zero leakage |
| Other remarks 7 | The sealing faces of valve seat and valve clack are build-up welded
with hard alloy to improve the erosion resistance and extend the
service life of valve. |
| Other remarks 8 | Blow-off prevention design to ensure the operation safety |
| Other remarks 9 | Drain board design to effectively prevent inflow of condensate to
insulation layer |
| Other remarks 10 | Low leakage packing is used for valve stem sealing to meet the
requirement for low leakage. |
